NT-Lite -- an x86-64 kernel
“Not only is UNIX dead, it’s starting to smell really bad.” - Rob Pike
“UNIX has three operations: read, write, and lie through ioctl.”
what is it?
NT-Lite is a 64-bit operating system kernel written from scratch.
It boots into a shell, launches programs, runs Doom, talks TCP/IP, and occasionally reminds you that it is still a hobby kernel.
features
- UEFI bootloader
- real SMP
- VAD-based virtual memory, file-backed and anonymous mmap, CoW, reclaim
- single address-space design with user/supervisor page permissions
- preemptive priority scheduler
- capability-style handles with rights checks, derivation, and revocation
- rich synchronization primitives
- IRQL, DPCs, kernel APCs, and user APCs
- user exception handling with structured and vectored handlers
- async file I/O with events, IOSBs, APC callbacks, and cancellation
- capability-relative VFS with IRPs
- refcounted mounted volumes with partition arrival/removal
- page cache with dirty writeback and invalidation
- USB bus, xHCI, mass storage, hubs, hotplug, and HID
- audio
- VMware SVGA display driver
- dynamic driver loading
- native BSD-ish socket syscalls
- DNS resolver syscall
- four-register syscall ABI with sized request structs for larger calls
- partial Win32 personality
- partial (microsoft-level) POSIX personality
- Doom
- video playback
- fully GDPR-compliant
- everything but the kitchen sink
paths
You thought it would be easy, would you?
"apps/shell_native.exe" -> current working directory, resolved in userspace
"/SystemRoot/apps/shell_native.exe" -> system volume through the resource namespace
"/Device/HarddiskVolume1/boot.ini" -> system volume through the resource namespace
"C:\apps\doom.exe" -> /SystemRoot/apps/doom.exe through win32.dll
"\apps\doom.exe" -> /SystemRoot/apps/doom.exe through win32.dll
"/apps/video.exe" -> /SystemRoot/apps/video.exe through posix.dll
Kernel filesystem syscalls are capability-relative; userspace owns the current working directory and resolves named resources through rssrv.
/SystemRoot is the configured boot volume. Other mounted volumes are discovered through the volume manager and opened by capability.
networking
The socket syscalls are BSD-shaped, not BSD-compatible. Same nouns (AF_INET, SOCK_STREAM, IPPROTO_TCP), none of the baggage:
one fixed-size tagged address struct instead of the sockaddr_in/sockaddr_storage casting dance,
no htons/ntohl conversions, and DNS resolution is a syscall rather than a userspace library call.
That's right microkernel purists, cry some more. Ergonomics.
Async is first-class here too, same machinery as the filesystem. Except the DNS resolver. Ergonomics, am I right?
how to build
- get mtools
- open the VS x64 build tools
- change into this directory
- run
build.bat - use one of:
run.bat— IDErund.bat— IDE, debugruna.bat— AHCIrunad.bat— AHCI, debug
how it looks when built
The ESP is just the boot anchor:
efi/boot/
bootx64.efi
efi/ntlite/fs/
...
boot.ini
The configured system volume carries the OS:
system/
colonel.exe
hal.dll
init.exe
rssrv.exe
syscall.dll
win32.dll
posix.dll
settings.ini
drivers/
drivers.ini
ahci.sys
ata.sys
fat.sys
hda.sys
lwip.sys
ntfs.sys
pci.sys
ps2.sys
rtl816x.sys
rtl8139.sys
serial.sys
usb.sys
vmwaresvga.sys
apps/
shell_native.exe
shell_win32.exe
shell_posix.exe
doom.exe
video.exe
edit.exe
httpget.exe
tcpserve.exe
udp.exe
resolve.exe
ping.exe
memtop.exe

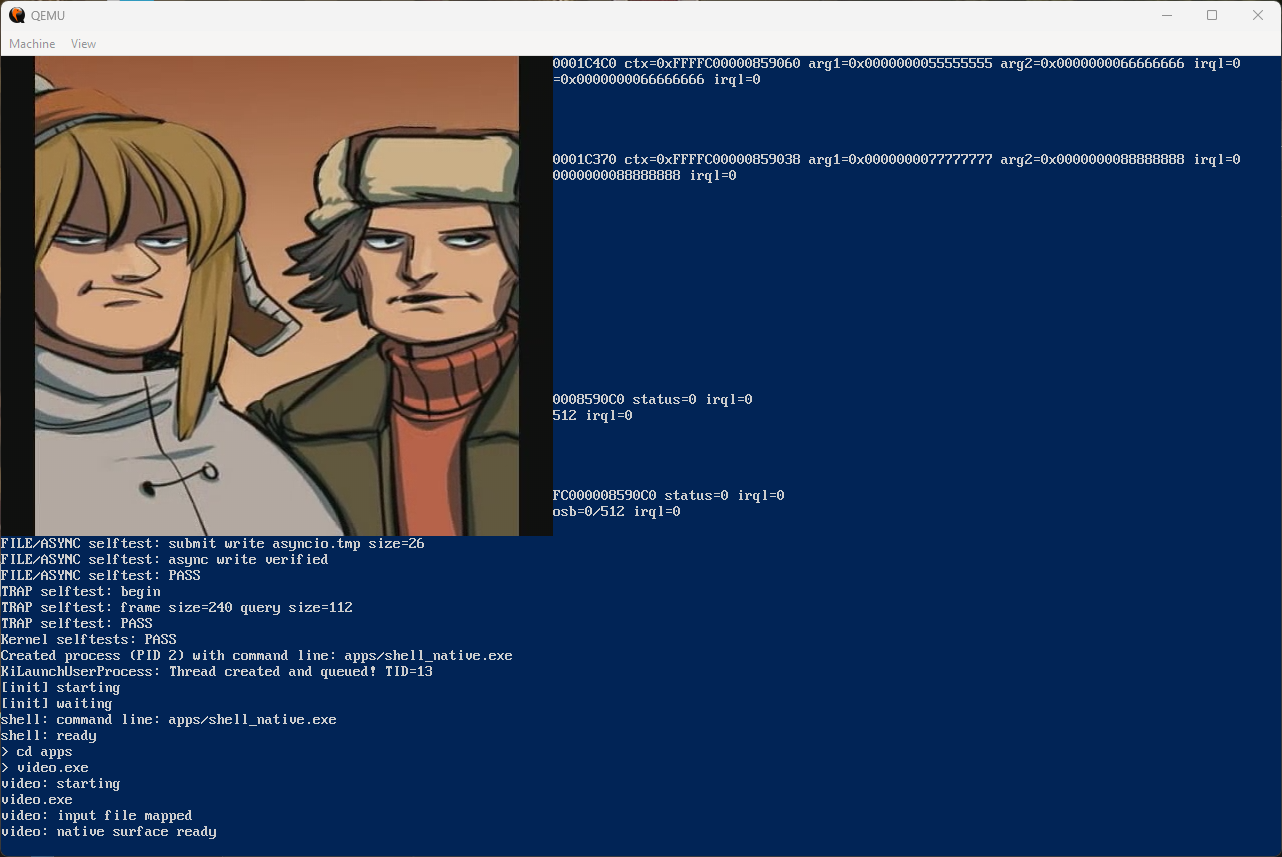

screenshots
faq
Q: Is it secure? A: Don't connect to the internet with it.
Q: Who is this for? A: Me.
Q: What's next? A: Whatever I fixate on next.
Q: Does it run Doom?
A: doom.exe
Q: Can it play Crysis? A: Into the bucket list.
Q: Does USB work? A: It did for everything I threw at it.
Q: If I write a program now, will it run in the future? A: WE DO, in fact, BREAK USERSPACE.
Q: Can you read and write files?
A: As far as I'm aware.
Q: Does it have async I/O?
A: The best you'll get.
Q: Does the networking actually work? A: It didn't crash yet.
Q: Does it really have SMP? A: Watch out. It bites.
Q: Is the Win32 layer real?
A: API wise, yes. Binary compatibility wise, close but no.
Q: Are processes isolated?
A: No. But IPC is free. And you can't steal handles. Is this how a serious modern OS should isolate processes? No.
Are we a serious OS? No. Is it very convenient? Absolutely.
Q: How often does it crash?
A: It doesn't if you don't touch it.
Q: Can it recover from a crash?
A: Works on my machine.
Q: Is this finished?
A: Does it look finished?
Q: Will it corrupt my data?
A: It shouldn't.
Q: Why is the path syntax so weird?
A: It makes sense to me.
Q: Why are the logs so verbose?
A: Try debugging an interrupt path with vibes.
Q: What should I read first?
A: This document.
Q: How do I contribute?
A: maksw@maksw.pl
Q: Can I use this in production?
A: Don't.
