NT-Lite is a 64-bit operating system kernel written from scratch. It has a UEFI bootloader, physical and virtual memory managers, a preemptive scheduler, a HAL, a VFS, a PE loader, dynamic drivers, partial Win32 and POSIX personalities, and enough asynchronous I/O machinery to make the kernel feel a little less like a toy and a little more like a tiny monster.

It boots into a shell, launches user processes, survives application crashes, and can run things it probably should not be able to run yet.

The codebase is still small enough to understand, but large enough to hurt your feelings.

features

UEFI bootloader
higher-half x86-64 kernel
real SMP: hardware AP startup, per-CPU state, scheduler-owned idle threads, reschedule IPIs, and TLB shootdowns
physical memory manager
virtual memory manager with kernel pool and user heap
W^X-style user page protections
single address-space design with user/supervisor page permissions
HAL for screen, keyboard, mouse, timer, PCI, APIC, HPET, AHCI, and IDE
preemptive priority scheduler accounting for ticks, context switches, idle selections, demotions, and aging promotions
processes and threads
process termination state tracking and exit signaling
object handles with per-handle rights metadata
events, semaphores, mutexes, queues, and alertable waits
IRQL model: PASSIVE_LEVEL, APC_LEVEL, DISPATCH_LEVEL, and device IRQLs
interrupt-exit scheduling instead of context-switching inside hard IRQ handlers
DPC queue for interrupt bottom halves
kernel APCs
user APCs through a real trap-frame return dispatcher
async file I/O with completion events, APC callbacks, IOSBs, and cancellation
VFS with IRPs
centralized IoCompleteRequest()
DRIVER_OBJECT / DEVICE_OBJECT driver model
IoCallDriver() dispatch path
AHCI driver, interrupt-driven
IDE driver, PIO/DMA
FAT32 filesystem driver with VFAT
USB with bus, xHCI, mass storage and HID
drive-number paths such as 0:/apps/shell.exe
lwIP network stack as a runtime driver (lwip.sys)
RTL8139 and RTL816x ethernet drivers
native BSD-style socket syscalls: SysSocket, SysBind, SysConnect, SysSend, SysRecv, SysPoll, SysResolveHost, and friends
length-tracked string-view syscall ABI with request structs for path/name/text arguments
printf/debug formatting support for bounded string views via %v
INI-based configuration
PE import resolution and dynamic .sys driver loading
partial Win32 personality
partial (stub/microsoft-level) POSIX personality
self-tests for APCs, async disk I/O, async file I/O, trap frames, and cancellation
fully GDPR-compliant

architecture notes

memory layout

Single address space for the whole system. No separate kernel/user page tables. Isolation comes from compilers, page permissions and privilege levels, not from switching CR3.

Kernel lives in the higher half. User processes only see what they are explicitly given. Kernel pages are supervisor-only so user-mode code cannot touch them. User pages are isolated from each other through the allocator and process creation path, not by hardware address-space separation. One rogue pointer can't crash the kernel but it might corrupt other processes. But what are the chances?

User heap and stack mappings are non-executable, and the PE loader applies final section protections after loading. Writable sections are left writable and non-executable; executable sections are mapped executable without write access where possible.

execution model

NT-Lite has a Windows-flavored execution model, but a simplified one.

PASSIVE_LEVEL   normal thread code; may wait, allocate, touch filesystems
APC_LEVEL       APC delivery / guarded regions
DISPATCH_LEVEL  scheduler, DPCs, spinlocks; must not block
DIRQL           hardware IRQ handlers; acknowledge device, queue bottom half, leave

The timer interrupt don't context-switch directly inside the IRQ handler. Interrupts unwind through a common exit path, which can drain DPCs, deliver APCs when legal, and perform deferred scheduling.

SMP

Once an AP reaches the kernel, it gets its own KCPU, kernel stack, GDT, TSS, GS base, idle thread, and scheduler state. The BSP is not special because the code wants it to be; it is special because hardware, firmware, and device interrupts keep making it special.

External device interrupts are routed to the BSP. CPU-local things such as exceptions, NMIs, syscalls, reschedule IPIs, and TLB shootdowns happen on the CPU that receives them.

TLB shootdowns use NMI delivery because fixed-vector IPIs are not good enough when another CPU may be spinning with interrupts masked. Unexpected NMIs still panic; shootdown NMIs return only while a shootdown is active.

DPCs and APCs

Hard IRQ handlers stay small. They acknowledge hardware, capture status, and queue DPCs.

DPCs run at DISPATCH_LEVEL and do the bottom-half work: input callbacks, disk completion wakeups, and other things that should not happen at device IRQL.

Kernel APCs run later at PASSIVE_LEVEL in the target thread. User APCs are delivered by editing the saved user trap frame and returning through a registered user-mode dispatcher stub in syscall.dll.

The important bit:

interrupt -> DPC -> IoCompleteRequest -> APC -> alertable wait/user callback

I/O and filesystems

Everything goes through the VFS. Disk access, filesystem parsing, path resolution, and process personalities are separate layers instead of one giant bowl of sadness.

Disk drivers expose devices. The I/O manager calls drivers through IoCallDriver(). Completion goes through IoCompleteRequest().

Async file I/O exists. We are somewhere between right and dangerous.

Async requests can complete by:

signaling an event
writing an IO_STATUS_BLOCK
queuing a kernel APC
queuing a user APC
being cancelled

drivers

PE32+ .sys files. The entry point, preferably named:

DriverEntry(HAL_API* hal)

Two loading phases:

boot drivers     loaded before the kernel does any real work
runtime drivers  loaded later, once storage and VFS are up

Disk drivers register real device objects, and I/O goes through the driver object/device object dispatch path.

Currently shipping:

AHCI   interrupt-driven SATA
IDE    PIO/DMA
FAT32  filesystem driver with VFAT and all
lwIP   TCP/IP network stack

processes, threads, and syscalls

PE images get loaded, imports resolved, then the first thread is queued. syscall.dll is the shared syscall entry point, and both personalities go through it.

String and buffer-heavy syscalls use request structs. Text arguments are passed as bounded SYS_STRING_VIEW values, then copied and validated by the kernel before use.

Scheduler is preemptive and priority-based. Process state and thread state are tracked separately, so a process can die or get reaped without taking the whole system down. init can restart things if needed. Process objects track termination and exit state separately from individual thread lifetime.

Handles carry rights metadata. Syscalls check both object type and required access for operations such as read, write, wait, signal, query, duplicate, and terminate.

Syscalls build real trap frames. That matters because user APC delivery needs to safely redirect the return path back into user mode and then restore the interrupted context with SysApcReturn.

personalities

The Win32 personality supports programs that expect drive letters, familiar process APIs, and a Windows-style runtime.

The POSIX personality maps the same kernel primitives into a tree-shaped namespace and a different userspace contract.

Binary compatibility is limited and a non-goal.

async I/O example

User-mode async I/O looks roughly like this:

SYS_IO_STATUS_BLOCK iosb;
uint32_t done;
SysEventCreate(0, 0, &done);

SYS_ASYNC_FILE_REQUEST req = {
    .FileHandle = file,
    .EventHandle = done,
    .Offset = 0,
    .Buffer = buffer,
    .Size = 512,
    .Iosb = &iosb,
    .RequestHandleOut = 0,
    .ApcRoutine = MyCompletionRoutine,
    .ApcContext = &something,
};

uint32_t s = SysReadFileAsync(&req);
if (s == SYS_STATUS_PENDING)
    s = SysEventWait(done, 1); // alertable

If the request completes by user APC, the alertable wait returns SYS_STATUS_USER_APC, the callback runs in user mode, and the original execution continues afterward.

networking

NT-Lite now has a TCP/IP stack via lwIP running as a runtime driver. The kernel exposes a native socket API through syscalls:

SysSocket / SysBind / SysListen / SysAccept / SysConnect
SysSend / SysRecv / SysSendTo / SysRecvFrom
SysShutdown / SysPoll
SysResolveHost for DNS
SysSetSocketOption / SysGetSocketOption

Test apps ship with the build: httpget.exe, tcpserve.exe, udp.exe, resolve.exe, and ping.exe.

Port forwarding is enabled by default in runa.bat — host port 8080 maps to guest port 8080.

paths

"apps/shell.exe"      -> current working directory
"0:/apps/shell.exe"   -> volume 0, native path
"2:/data/config.ini"  -> volume 2, native path
"C:\apps\doom.exe"    -> volume 0, win32.dll translated path, mapping is simple c->0, d->1, etc.
"/apps/video.exe"     -> volume 0, posix.dll translated path, mapping is simple: root is volume 0, then directories as volumes, so
"/1/apps/video.exe"   -> volume 1

Volumes 0-7 are available. A volume only works if a filesystem is registered on it (duh). The Win32 personality translates drive letters to volume numbers, while the POSIX personality maps volumes onto a tree.

Path parsing is length-aware internally. Embedded NUL bytes are rejected for text paths and names.

how to build

open the VS x64 build tools as administrator
change into this directory
run build.bat
use one of:
- run.bat — IDE
- rund.bat — IDE, debug
- runa.bat — AHCI
- runad.bat — AHCI, debug

how it looks when built

efi/boot/
  bootx64.efi
boot.ini
drivers/
  drivers.ini
  ahci.sys
  fat32.sys
  ide.sys
  lwip.sys
  rtl8139.sys
system/
  colonel.exe
  hal.dll
  init.exe
  syscall.dll
  win32.dll
  posix.dll
apps/
  shell_native.exe
  shell_win32.exe
  shell_posix.exe
  async_apc.exe
  async_cancel.exe
  doom.exe
  video.exe
  httpget.exe
  tcpserve.exe
  udp.exe
  resolve.exe
  ping.exe

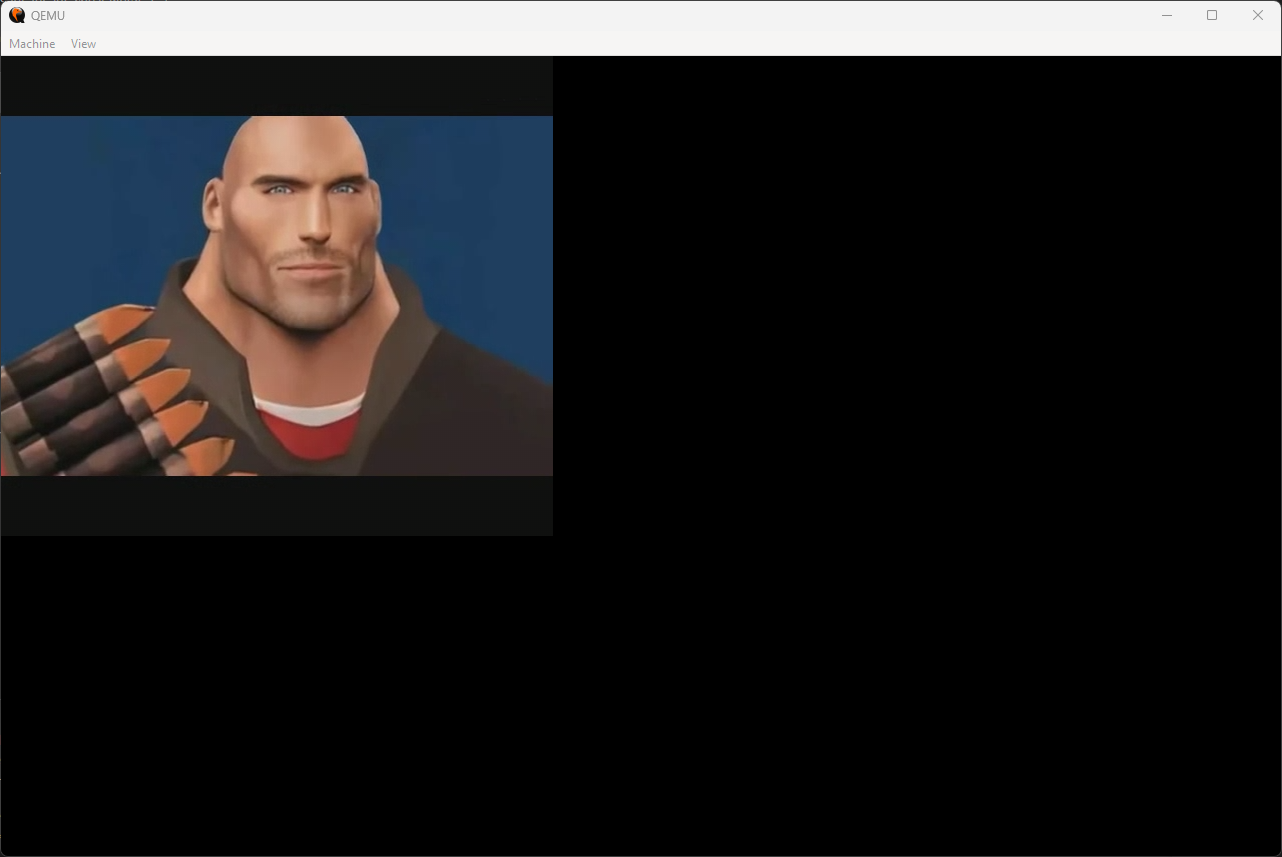

screenshots

TODO

todo

faq

Q: Why?
A: Reasons.

Q: Is it secure? A: Don't connect to the internet with it.

Q: Who is this for? A: Me.

Q: What's next? A: todo

Q: Does it run Doom?
A: doom.exe

Q: Does USB work? A: For me, my keyboard, mouse and thumbdrive.

Q: If I write a program now, will it run in the future? A: Not a chance. WE DO - in fact - BREAK USERSPACE.

Q: Can you read and write files?
A: As far as I'm aware.

Q: Does it have async I/O?
A: The best you'll get.

Q: Does the networking actually work? A: It didn't crash yet.

Q: Does it really have SMP? A: Watch out. It bites.

Q: Is the Win32 layer real?
A: Depends how you frame it. Some apps will run, most will not.

Q: Are processes isolated?
A: No. But IPC is free. Is this how a serious modern OS should isolate processes? No. Are we a serious OS? No. Is it very convenient while building? Absolutely. Do I care? Nope.

Q: How often does it crash?
A: Like Windows 11.

Q: Can it recover from a crash?
A: Works on my machine.

Q: Is this finished?
A: No. And it never will be.

Q: Will it corrupt my data?
A: It shouldn't.

Q: Why is the path syntax so weird?
A: It makes sense to me.

Q: Why are the logs so verbose?
A: How else do I debug it?

Q: What should I read first?
A: This document.

Q: How do I contribute? A: maksw@maksw.pl

Q: Where's the source? A: Right here.

Q: Can I use this in production?
A: Don't.
